Strengthening and repair of a Grade II listed listed underbridge

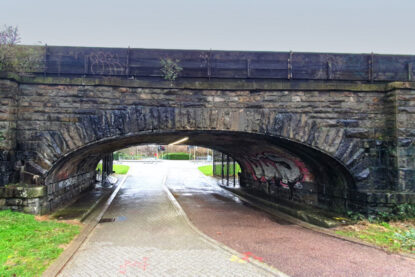

Goldhawk Bridge Restoration in their capacity as specialist bridge surveyors and engineers were invited to undertake a load capacity assessment and design a remedial strengthening scheme for the Cart Road Underbridge in Cardiff, thereby enabling the introduction of an additional rail track on the line between Cardiff Central and Cardiff Bay stations.

The challenges and solutions

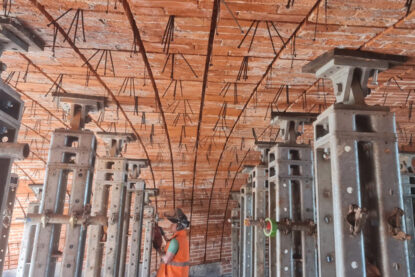

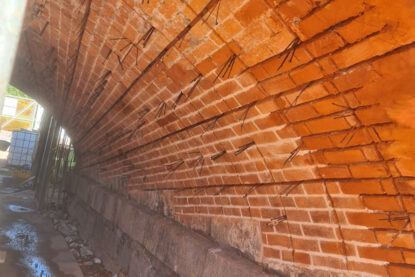

The resulting AIP report from our analysis in March 2023 defines the requirement for a MARS grid system to be installed into the soffit of the arch to enhance the structural capacity of the bridge.

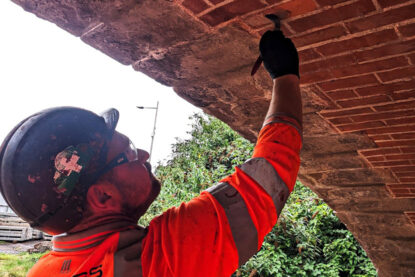

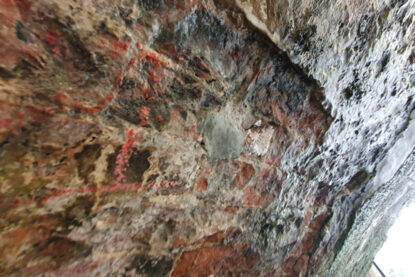

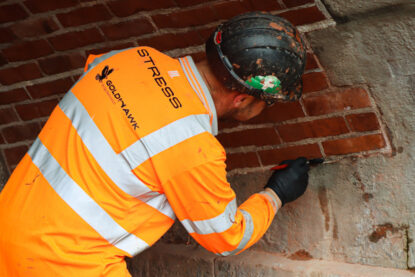

The masonry in the arch barrel was in poor condition, with evidence of spalling and mortar loss over significant portions of the barrel and voussoirs. Various repairs had been previously been undertaken, using cementitious mortars and other such materials and that were unsympathetic to the bridge’s original aesthetic and historic standing.

Delivering on the client’s brief

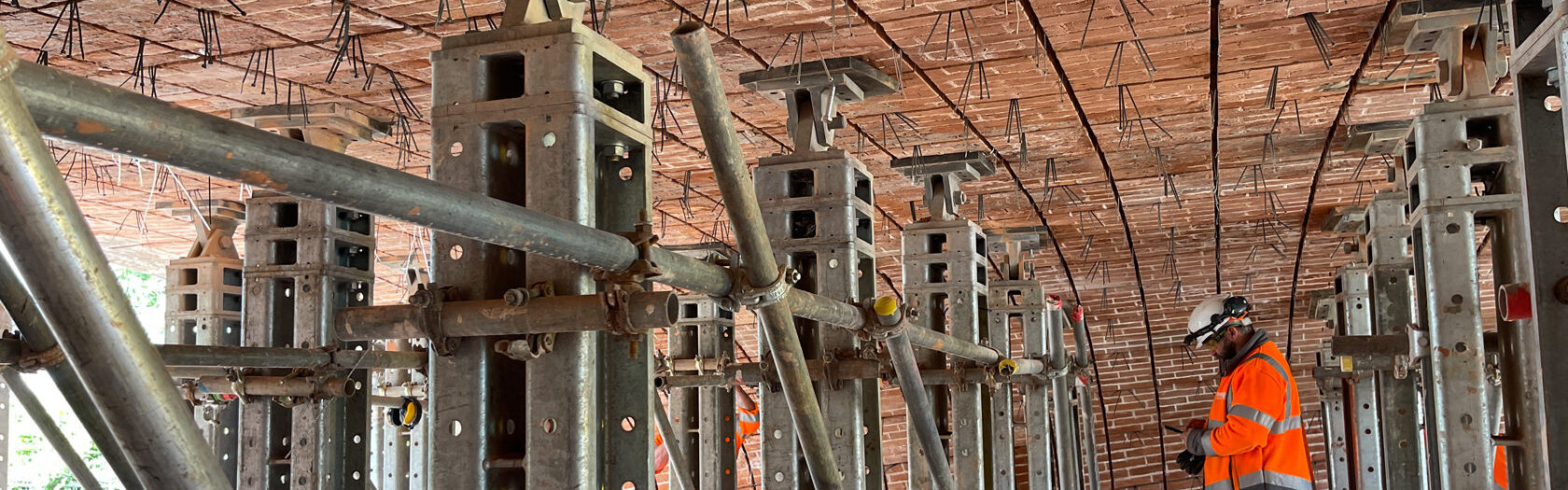

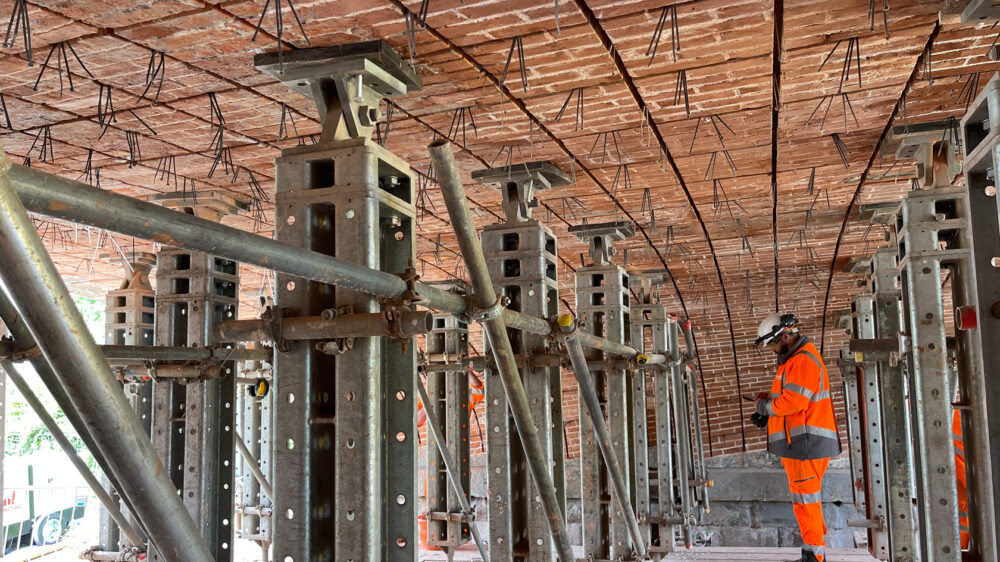

Due to the structural condition of the arch and the client’s programme of works it was necessary to carry out the strengthening whilst allowing both rail traffic on the single line and construction traffic to lay the second new line.

The MARS system was chosen by the client to provide the bridge structure with the necessary capacity to support two rail lines and achieve Route Availability 6 on both the up and down lines.

The MARS system could be installed whilst the programme of track alterations was completed and the existing line remaining open to rail traffic.

A successful conclusion

Goldhawk Bridge Restoration successfully completed the programme set out by the client, Transport for Wales. CADW (Welsh Conservation) permitted the MARS strengthening system together with the repairs, as it met their stringent aesthetic parameters.
